Application of Tunable Phase Shifter
In radio frequency (RF) and microwave systems, phase shifters are widely used for fine adjustment of signal phases. They are indispensable in fields such as test and measurement, communication systems, radar, and electronic countermeasures.

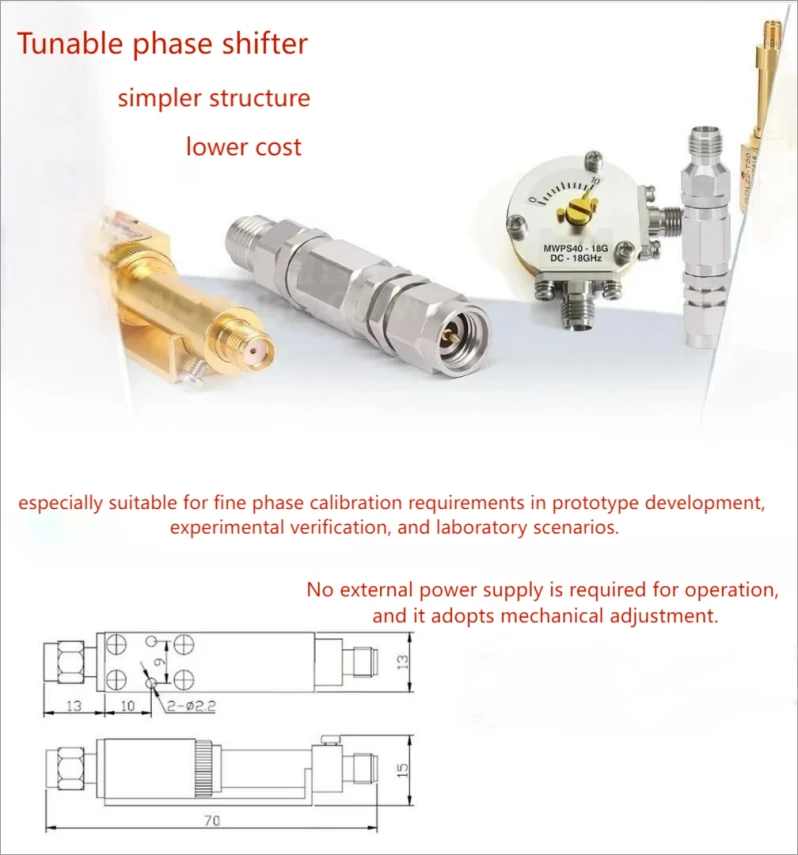

Tunable phase shifters feature a simpler structure and lower cost, making them particularly suitable for scenarios like prototype development, experimental verification, and fine phase calibration in laboratory settings.
High - frequency Application
It can cover the high - frequency range of DC - 50GHz and is suitable for millimeter - wave systems.
Support Manual Precision Adjustment
It can meet the requirements of prototype development and high - frequency testing.
Multiple Interface Options Available

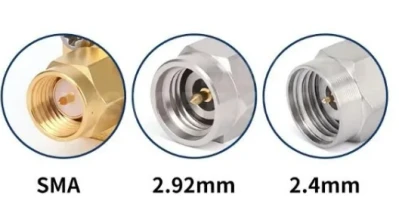

Various interface types such as SMA, 2.92mm, and 2.4mm are provided for selection.
Application Fields
Typical Application Scenarios of Phase Shifters
Test and Measurement
Used for signal calibration, error compensation, and phase equalization.
Communication Systems
Adjust phases in analog link delay and phased array antenna systems.
Military Research
Supports radar beam control and phase adjustment in electronic countermeasures.
Prototype Development
Used for circuit board debugging and system performance verification.
Tunable phase shifters play a key role in fine-tuning and optimizing system performance in these scenarios.
