Bias Tee

Your Professional Bias Tee Supplier

Flexi RF Inc. was founded in 2023 in Santa Clara, California - at the heart of Silicon Valley, by a team of experienced RF engineers. We specialize in the design, manufacture, and supply of passive and active RF components. Our product line includes passive components such as antennas, connectors, adapters, cable assemblies, attenuators, and loads; and active components such as amplifiers, switches, and select custom modules.

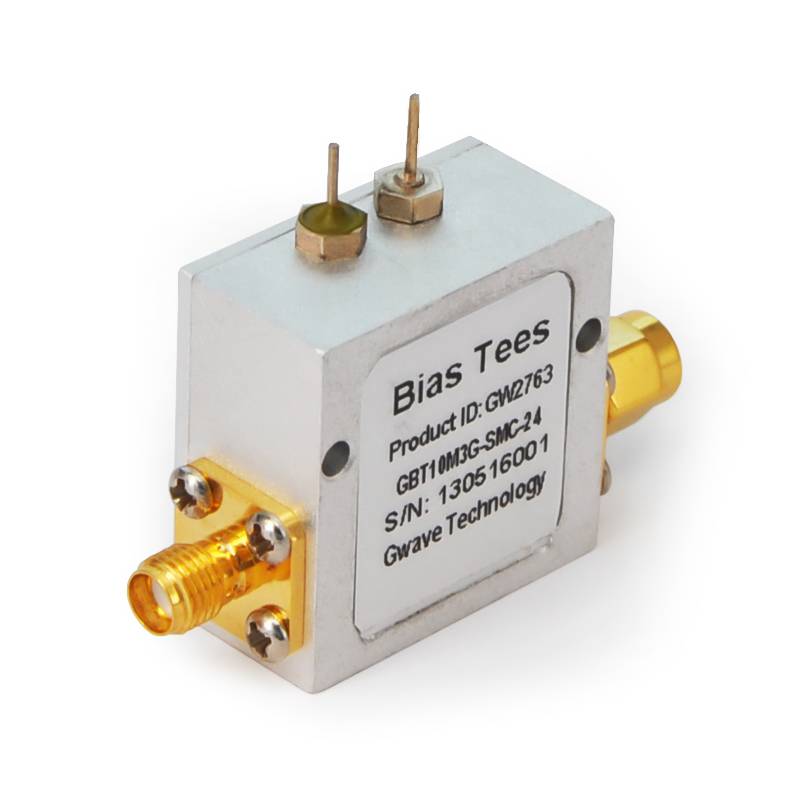

SMA Bias Tee

Why Choose Us

OEM and ODM
We offer both OEM and ODM services with no minimum order quantity. Whether you are developing a next-generation system or require a mature RF module solution, we provide products and technical support that scale with your innovation.

Our Services
Flexi RF offers a one-year warranty on standard products, ensuring that our service remains reliable and efficient.

Real-Time Response
Our cross-border team, spanning China and the United States, can respond to customer needs around the clock, ensuring seamless and efficient service across time zones.

Professional Team
With decades of industry experience and professional R&D as well as manufacturing facilities, our team of experienced engineers possesses strong independent innovation capabilities, enabling us to provide customers with high-quality customized RF solutions.

Specification

Sku	Connector Series	Frequency	VSWR	Current, Max (mA)
GBT001042-SMA	SMA Female	10MHz~4.2GHz	1.25	1000
Voltage, DC Max (Volts)	Power, Max Input (Watts)	DC Port Connector	Body Material	Body Plating
+72	5	DC	Aluminum Alloy	Oxidation

Advantages of Bias Tee

Isolation of DC and RF Signals

One of the primary benefits of using a bias tee is its ability to effectively isolate DC and RF signals. This isolation prevents interference and ensures that DC power does not disrupt the high-frequency signal transmission. It allows for the seamless integration of power and data signals, which is critical in high-performance communication and signal processing systems.

Efficient Power Supply Integration

Bias tees provide an efficient means of integrating power supply into RF and microwave circuits. By enabling the delivery of DC power through a single coaxial or waveguide transmission line, bias tees streamline system architecture and reduce the need for additional cabling. This simplification leads to reduced system complexity and enhanced overall reliability, contributing to the optimal functionality of advanced electronic systems.

Basic Components of a Bias Tee

DC Voltage Input
The DC voltage input is specifically designed for the injection of DC power into the bias tee. This input typically employs filtering mechanisms to minimize noise and ensure the smooth integration of DC power into the system. A reliable DC voltage input is critical for applications that require constant and stable power supply, such as powering active electronic devices like amplifiers and oscillators.

RF Signal Input
The RF signal input is dedicated to handling high-frequency AC signals. It includes features to ensure minimal signal loss and optimal transmission quality. This component is precisely engineered to facilitate the seamless integration of RF signals, maintaining the high fidelity required for applications in telecommunications and advanced communication systems.

Combined Output
The combined output port is where the magic happens in a bias tee. It amalgamates the injected DC power with the incoming RF signal, allowing both to coexist on the same transmission line without interference. The combined output ensures that both AC and DC elements function together harmoniously while reaching their designated destinations effectively.

Applications of Bias Tee

RF Receiver Systems

Bias tees play a crucial role in RF receiver systems, especially those utilizing low-noise amplifiers (LNAs). In this context, a bias tee is employed to provide the necessary DC biasing to the LNA while allowing the RF signal to pass through unaffected. This ensures optimal performance and sensitivity in RF receivers, making bias tees integral components in communication systems, radar systems, and other applications where signal integrity is paramount.

Satellite Communication Systems

Satellite communication systems often employ bias tees to supply DC power to active antennas or low-noise amplifiers onboard. By combining the RF signal and DC power through a bias tee, satellite systems can efficiently transmit and receive signals without compromising the integrity of the transmitted data. This application is vital for ensuring reliable and continuous communication between ground stations and satellites in orbit.

Fiber Optic Systems

In fiber optic systems, bias tees find application in providing power to optoelectronic components such as lasers or photodiodes. By using bias tees, these components can receive the necessary DC biasing while allowing the optical signals to pass through unimpeded. This is particularly relevant in telecommunications and data transmission systems where the integration of optical and electronic components is common.

Medical Imaging Equipment

Bias tees are utilized in medical imaging equipment, such as magnetic resonance imaging (MRI) systems. In these applications, bias tees are employed to supply power and control signals to RF coils used in the imaging process. This ensures that the RF coils receive the required biasing while allowing the radiofrequency signals used in imaging to pass through seamlessly, contributing to the accuracy and reliability of medical diagnostics.

Laboratory Test and Measurement

In laboratory setups for testing and measuring electronic components, bias tees find broad applications. They are used to combine RF signals and DC biasing for various devices, facilitating accurate testing conditions. Whether testing transistors, amplifiers, or other electronic components, bias tees provide a versatile solution for combining and managing RF and DC signals in laboratory environments.

Customization Services

To better meet the diverse needs of different industries and customers, we can tailor bias tee professional solutions to your specific application scenarios and special requirements. For further information or support, please feel free to contact us.

Order Process

Contact Customer Service

Submit Order

Obtain a Quote

Confirm Order

Arrange Payment

Track Order

Receive and Inspect Goods

Packaging and Shipping

Packaging	Plastic bags, paper boxes
Transportation methods	Road transport, rail transport, sea transport, air transport

FAQ

Q: What is the purpose of bias tee?

A: A bias tee is used to insert DC power into an AC signal to power remote antenna amplifiers or other devices. It is usually positioned at the receiving end of the coaxial cable to pass DC power from an external source to the coaxial cable running to powered device.

Q: What is the difference between a bias tee and a DC block?

A: Bias tees are used anywhere from cell phone amplifiers to test and measurement equipment. An example of this is with powered probes which have a power hookup at the same port as the RF signal port. DC blocks are typically only used where powered RF transmission lines, or “hot” conductors, are used.

Q: How to test bias tee?

A: For Bias Tee, the component between two connectors is only a capacitor. In order to test the S-parameters for Bias Tee, we only need to connect VNA Port 1 and Port 2 output to the two connectors. There is no need to feed the DC Voltage on the Feed Pin.

Q: Are bias tees bidirectional?

A: The bias tee is a passive, bidirectional device. It must have complementary uses: to combine DC power and high-frequency (RF) signals into a single port (RF and DC) or to split a combined RF and DC signal into its two constituents.

Q: What is the impedance of a bias tee?

A: A typical value for the impedance ratio could range anywhere from n = 1 to n = 1000. The bias tee's impedance Z(tee) will be matched to the transmission line impedance, normally 50 Ohms on a PCB.

We're professional bias tee manufacturers and suppliers in USA, specialized in providing high quality customized service. We warmly welcome you to buy high-grade bias tee in stock here from our factory.
